Mitsubishi 3F-H Style 40 / Diamond 3000
(All sizes in mm)
Please refer to the press schematic to determine the correct rollers and quantities.
Mitsubishi Stripe Settings
- B 2-3mm to A, 3-5mm to C
- E 3mm to F, 4mm to C
- D 5mm to upper C, 6mm to lower C
- HQ 5mm to C, C
- H 5mm to C, J, 6mm to K
- M 5mm to C, 6mm to K
- L 5mm to C, 6mm to K
- N 4mm to K, 3-4mm to DB
- W 3-4mm to plate, 6mm to K
- X 4-5mm to plate, 6mm to K, 4mm to P
- Y 4-5mm to plate, 6mm to K, 4mm to P
- Z 4-5mm to plate, 6mm to K, 4mm to DB
- DQ 5-6mm to plate, 3-4mm to DB, 6-8mm to DR
- DT 10mm to DR
Always set stripes lighter than Manufacturer's specifications.
All ink rollers include bearings.
|
 |

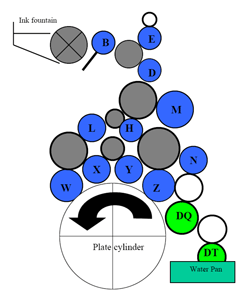

Roller
Configuration Diagram |
 |
 |
|
Note: Diamond 3000 users a longer oal on the DQ water form 45.906 MI226 water form.
Early 3000's use same W/FM as 3FH style.
Note: HQ Distributor is an opitional roller used in the newest ink train. Older presses may not use it. HQ used in Serial #1074 and after.
|
|
 |
|
|
|
|
